| Product name: | Optical Distribution Frame /ODF | Type: | odf, cross cabinet |
|---|---|---|---|
| Fiber Port: | LC,SC,FC,ST | Zertifizierung: | SO9001,ROHS,TLC,ISO |
| Material: | Zinc-plated Cold Roll Steel Sheet | Capacity: | 12/24/48/72/96 |
| Hervorheben: | smc ODF Optical Distribution Frame,smc ODF,Smc Optical Distribution Frame |
||
odf box ftth fc smc fiber optic telecom cross connection cabinet

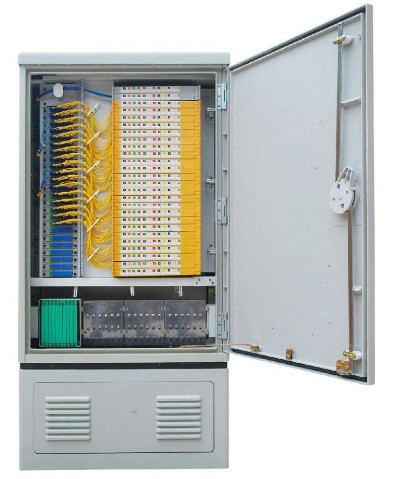

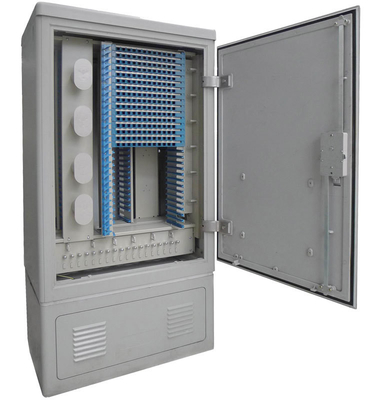

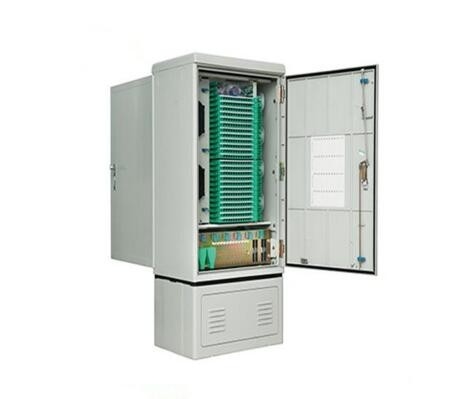

IP65 Fiber Cross Connect Cabinet W-TEL Outdoor Indoor SMC OpticFiber Distribution Cross Connection ODF DDF Cabinet
1. connecting trunk and distributing optical fiber cable.
2. capability of splicing, storage, and fiber cable distribution.
3. Fiber optic cross cabinet, max up to 12/24/48 trays, 12 ports one tray, total 144/288/576 ports, FC or SC adapter can be installed.
5. Optional cabinet material: SMC, stainless steel.
Parameter:
| Operating Temperature | -40°C~+60°C |
| Relative humidity | ≤95%(40°C) |
| Atmospheric pressure | 70kpa-106kpa |
| Insulated resistance | ≥2x10000M/500V(DC) |
| Connector loss (insert, repeat) | ≤0.5db |
| Return loss | pc ≥ 40db, UPC ≥ 50dB, APC ≥ 60dB |
| Mechanical Durability Test | ≥1000 times |
| Warranty time | 50 years |
Features:
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C 96C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation
Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
