| Fiber type: | SM/MM | Outer jacket: | PVC/LSZH/OFNP |
|---|---|---|---|
| Fiber quality: | Duplex | Color: | Yelllow/Orange/Aqua/Customized |
| Cable diameter: | 2.0/3.0mm | Zertifizierung: | ISO9001/CE/ROHS |
| Hervorheben: | GJFJBV Single Mode Fiber Optic Cable,GJFJBV Fiber Optic Cable,GJFJBV |
||

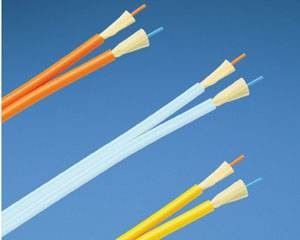

Indoor Duplex Zip Cord GJFJBV Single Mode Fiber Optic Cable
Indoor cable(Duplex Zipcord)-GJFJBV
Discription:

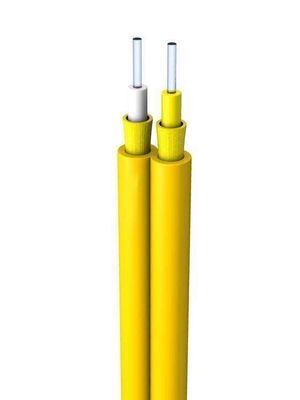

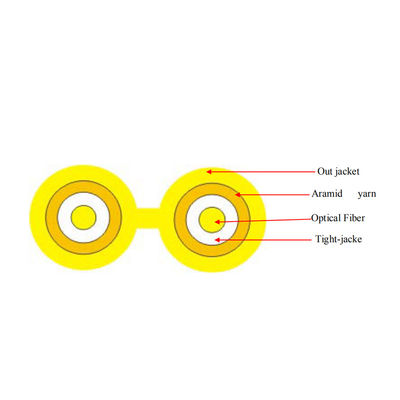

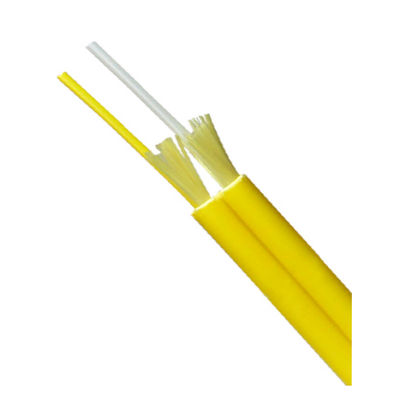

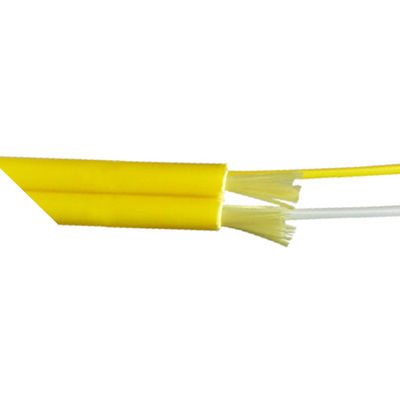

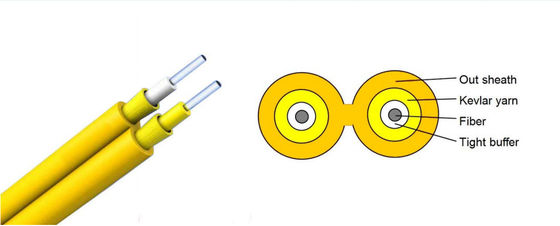

Duplex cable is the fiber optic cable which uses single φ900μm or 600μm tight buffer fiber as optical communication medium, the tight buffer fiber warped with a layer of aramid yarn as strength member units, and the cable is completed with PVC or LSZH (low smoke, Zero halogen, Flame-retardant) jacket, other material available on request.
Features:
High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission.
Small outer diameter, lightweight, flame-retardant, easy to strip, low attenuation, physically soft.
Direct splicing between tight buffer cables and need no tie-in box or pigtails.
Suitable for installation, operation, and convenient for maintenance.
Application:
1. As building to building connecting cable
2. As inddor soft cable along the wall, ceiling, between layers and in conduits
3. As pigtails, movable connectors and patch cords for communication equipment.
Specification:
| Out sheath Diameter |
Tight buffer Diameter |
Nominal weight | Max.tensile strength(N) | Min.Bending Radius(mm) | Max.Crush Resistance(N/100mm) | Temperature | |||
| (MM) | (MM) | (KG) | Short-term | Long-term | Dynamic | Static | Short-term | Long-term | ℃ |
| 1.6x3.4 | 0.6 | 4.8 | 160 | 80 | 20D | 10D | 500 | 100 | -20~60 |
| 1.8x3.8 | 0.6 | 5 | 160 | 80 | 20D | 10D | 500 | 100 | -20~60 |
| 2.0x4.2 | 0.9 | 7 | 200 | 100 | 20D | 10D | 500 | 100 | -20~60 |
| 2.8x5.8 | 0.9 | 11.5 | 300 | 160 | 20D | 10D | 500 | 100 | -20~60 |
| 3.0x6.2 | 0.9 | 12.5 | 300 | 160 | 20D | 10D | 500 | 100 | -20~60 |
Order Information:
Ⅰ Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
Ⅱ Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
Ⅲ Outer Diamater of cable: 2.0mm, 3.0mm

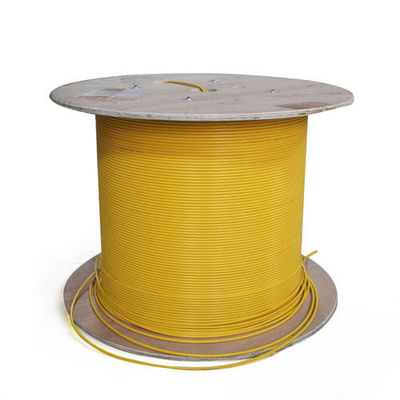

Ⅳ Cable length: 2000M/Drum( customized, MOQ=2000M)
Ⅴ Cable Jacket: PVC,LSZH,OFNR,OFNP
