Produktdetails:
Zahlung und Versand AGB:
|
| Size: | 100mm*80mm*15mm | Material: | PC/ABS |
|---|---|---|---|
| Core Capacity: | 12 /24 Fiber | Suitable adaptor: | SC,FC,LC,ST |
| Color: | white , black ,grey | Application: | FTTx Solutions |
| Hervorheben: | 106 Kpa Fiber Optics Accessories,12 core Fiber optic splice trays,24core Fiber optic splice trays |
||
ABS Fiber Optics Accessories
24cores 12 core splice cassette module fiber optic cable splice tray
Introduction:
Fiber optic splice trays are designed to provide a location to store and to protect the fiber cables and the splices. It is mainly used in rack mount and wall mount terminal box, splice closure for cable management. The splice tray expands fiber splice capabilities as well as provides the splicing location for fiber optic cables. It can be put into the fiber distribution frame, fiber splice closure, optic terminal box etc.
Features:
Management and storage pigtail
Fiber optic fusion protection
Use for single-mode or multimode fiber
Durable injection-molded plastic trays and covers
Center holes for mounting of the tray
12-fiber and 24-fiber splice trays installable in Wall Mount enclosures & splice closures
Several capacity: 12, 24, 36, 48, 72, 96, splices.
Several adapters can be installed: FC, SC, ST, duplex LC
Specification:
|
Material |
ABS plastic |
|
Type |
12 24 cores for one unit |
|
Size |
160x100x13.5 |
|
Working temperature |
-5 °C ~ 40 °C |
|
Relative humidity |
≤ 85% (30 °C pm) |
|
Atmospheric pressure |
70 ~ 106Kpa |
|
Fire retardant: flame retardant plastic (ABS) |
flame retardant meet industry requirements, adding anti-aging agent |
Application:
1.Fiber optic distribution frame
2.FTTH terminal box
3.Fiber optic splice closures
4.Optical cabinet

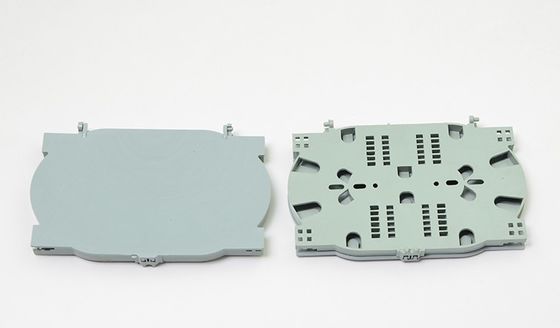

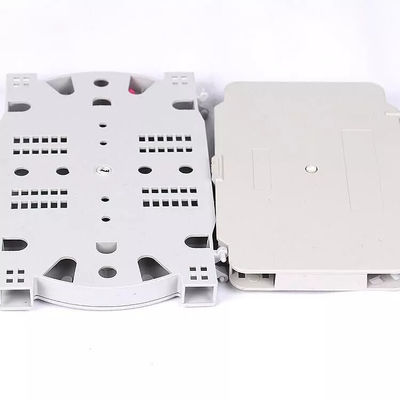

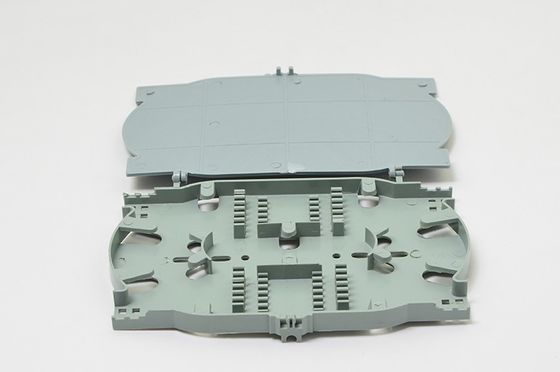

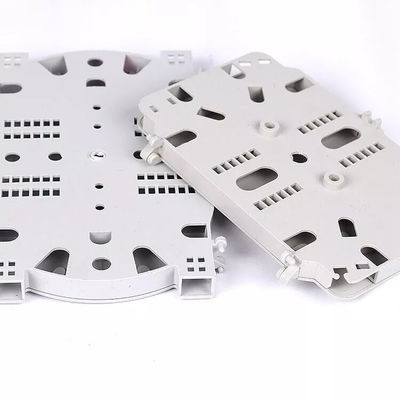

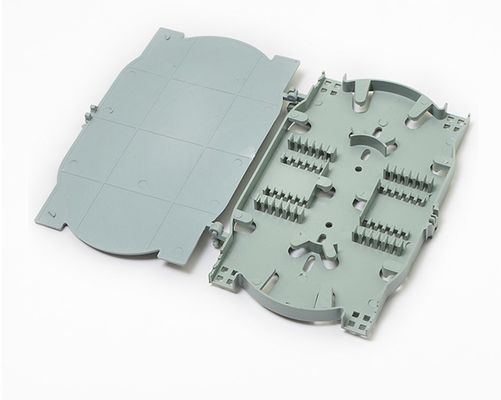

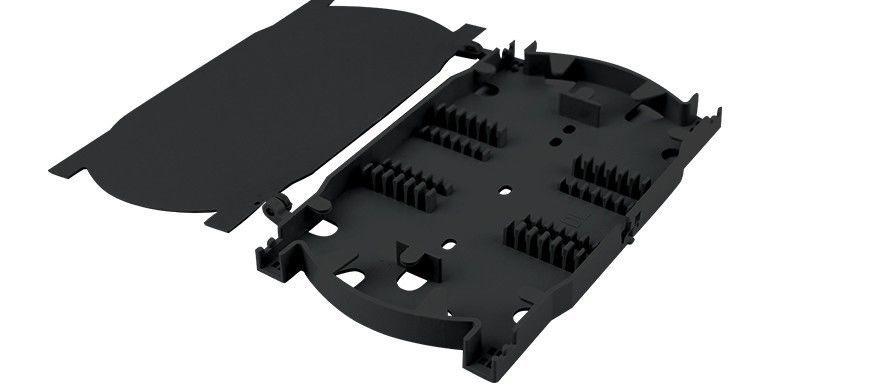

Product detail pictures:
Packaging & Shipping
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or Foclink brand are available
Inner packing: individual package 1pcs in a blister box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
