| Length: | 1m or customized | Cable color: | Colors |
|---|---|---|---|
| Connector: | SC,FC,LC | Insertion loss: | IL<0.2db |
| Return loss: | >50dB | Wavelength: | 1310nm/1550nm/850nm/1300nm |
| Hervorheben: | 1550nm Simplex optical fiber pigtail,1550nm 20M Fiber Optic Pigtail,1550nm 1300nm Fiber Optic Pigtail |
||

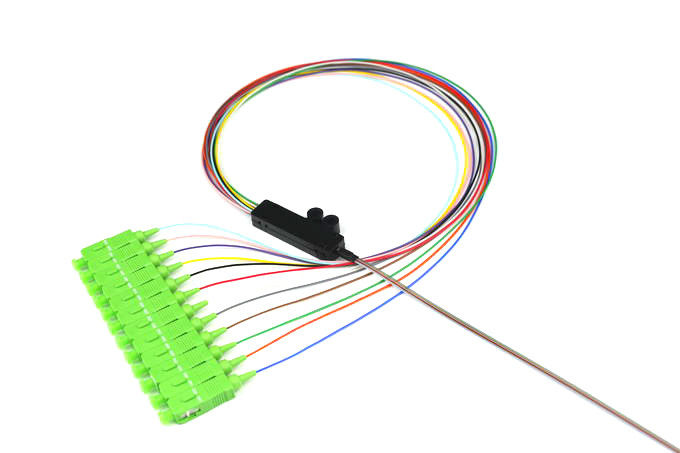

SC,LC,FC,ST connector for option.
Any length is available: 1m,1.5m 20m or other length you required.
Different fiber diameter for option: 0.9mm, 2mm or 3mm
Telecom level and insertion loss below 0.3 db.
The pigtail corresponds to the international standard IEC 874-10.
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Medical
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
