| Apply port: | SC Simplex or Duplex / MPO Simplex | Capacity: | 12core |
|---|---|---|---|
| Size: | 180 x 90 x 30 (mm) | Material: | Metal / ABS |
| Color: | Black | Application: | Network, Telecommunications |
| Fiber Type: | Singlemode / Multimode | Adapter: | Beige / Blue / Green /Auqa / purple |
| Hervorheben: | 1310nm MPO MTP Patch Cord,Duplex MPO MTP,Multimode Duplex MPO MTP |
||
1310nm Network Multimode Duplex MPO MTP Patch Cord

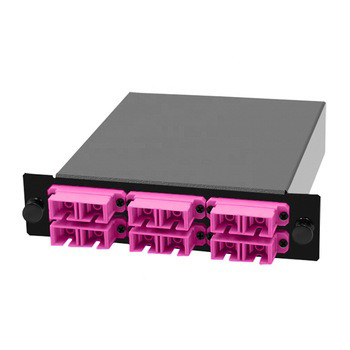

12F Optic fiebr MPO MTP Cassette Modules equipped with SC Patch Panel Simplex Duplex connector
Introduction:

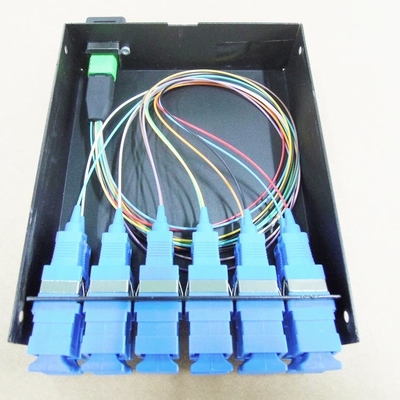

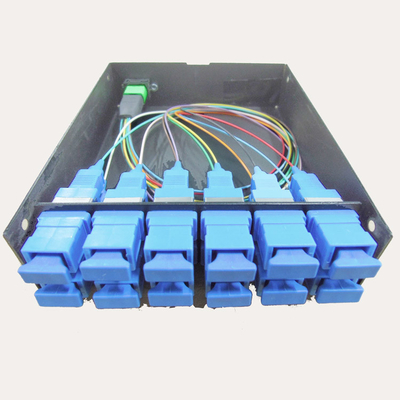

MPO cassette module is mainly used to divide the 12 fibers MPO connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cord ,the output of the module can be directly connected with the equipments , frame or client’s end.
This transition module is characterized by single core or double core port in module front, 12 core SC simplex and LC duplex connectors are optional, one or two adapters are installed on the back, nodule is transition patch cord, directly connected the module front panel with the back of the adapter
Features:
High-density and small desing, Easy and fast installation
Available in 12/24/48 fiber versions.
Field connections with guaranteed quality and simplifies fiber routing.
Modular system management, easy reconfiguration for moves, adds and changes.
Customized fiber polarity in the module.
Application:
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
PERFORMANCE OF ASSEMBLIES
MPO Connector
| FIBER TYPE | SINGLE MODE | MULTI-MODE | |
| Insertion Loss | Typical(dB) | 0.35 | 0.35 |
| Maximum(dB) | 0.75 | 0.75 | |
| Low Insertion Loss | Typical(dB) | 0.10 | 0.10 |
| Maximum(dB) | 0.35 | 0.35 | |
| Return Loss(dB) | ≥60(APC) | ≥20(PC) | |
| ≥50(PC) | |||
| Male/Female | Male :have pin | Female :no pin | |
| Durability(dB) | ≤0.2 500matings | ||
| Working Temperature(℃) | -20~+70 | ||
| Testing Wavelength(nm) | 1310 | ||
LC/SC/FC and other Connectors
| FIBER TYPE | SINGLE MODE | MULTI-MODE | |
| Connector Type | PC | APC | PC |
| Insertion Loss(dB) | ≤0.3 | ||
| Return Loss(dB) | ≥50 | ≥60 | ≥35 |
| Durability (dB) | ≤0.2 1000matings | ||
| Working Temperature(℃) | -20~+70 | ||
| Testing Wavelength(nm) | 1310 | ||
