| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| Connector type: | Female /Male | Fiber qty: | 8 /12 /24 core |
| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Connector color: | Blue/ Green / Beige / Auqa / Purple /Violet |
| Hervorheben: | MPO MTP Loopback,Fiber Optic Loopback,OM3 OM4 Loopback |
||

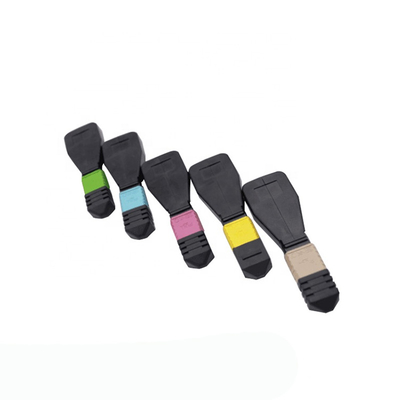

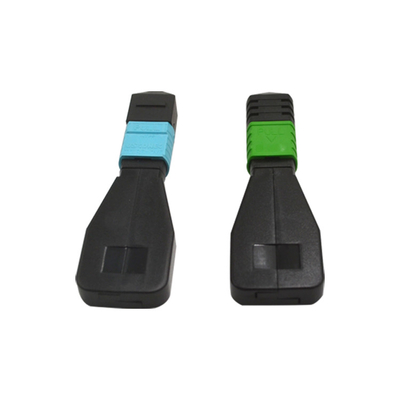

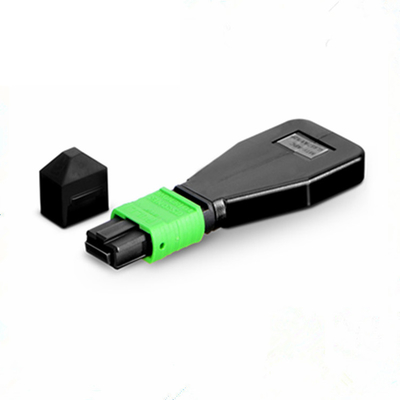

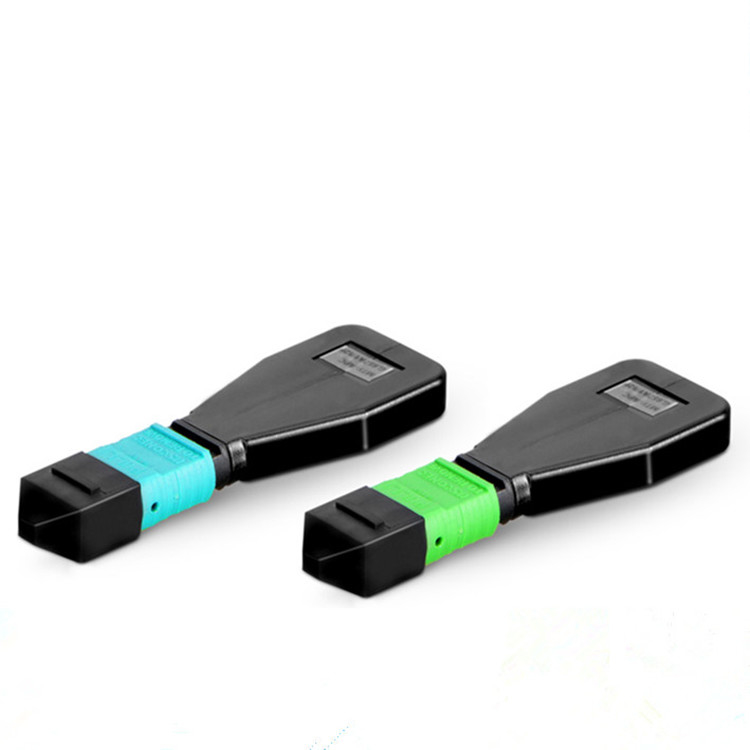

Singlemode OM3 OM4 Fiber Optic MPO MTP Loopback
MPO LOOK BACK Fiber Optic MPO MTP Loopback 24 Cores 12 Core Singlemode OM3 OM4
Description:
MTP Loopback modules are used widely within testing environment especially within parallel optics 40/100G networks. Devices allow verification and testing of transceivers featuring MTP interface – 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP transceivers interfaces. MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP trunks/patch leads.
Features:
Ulitize MPO/MTP connectors
Rapid deployment
Factory terminated
100% test
High density cable
Optimized performance
Compliant to directive 200/95/EC(RoHS)
MPO connector complies with IEC-61754-7
Application:
40GbE QSFP+ Optical Testing
Research and Development
Manufacturing Test
Troubleshooting
Quality Control
Training
Connector Performance Specifications
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
packing information:
| Products Packing | |
| Inner packing | 1piece per plastic bag |
| Min order | 1pieces |
| 10 pieces weight | 0.2-3kg |
| Outer packing | Carton box |
